The Complete Guide to Kafka Change Data Capture (CDC)

Change Data Capture (CDC) tracks row-level changes in a database and publishes them as events. When paired with Apache Kafka, CDC turns your databases into real-time event streams without modifying application code or adding polling overhead.

This guide covers CDC fundamentals, compares the dominant implementation patterns, walks through a working PostgreSQL-to-Kafka setup, and shows where CDC fits in a broader data mesh architecture.

What CDC Is and Why It Matters

Traditional data integration relies on batch ETL: extract everything from the source, transform it, load it into the target. This approach has well-known problems. It introduces latency (hours or days), wastes resources by re-reading unchanged data, and puts load on the source database during extraction windows.

CDC solves these problems by capturing only the rows that changed (inserts, updates, deletes) and streaming them as individual events. The source database is read through its internal replication mechanism, typically the write-ahead log (WAL), so the impact on production workloads is minimal.

In practice, CDC gives you:

• Sub-second propagation of database changes to downstream systems
• A complete, ordered history of every mutation, useful for audit trails and temporal queries
• Decoupled producers and consumers, since changes flow through Kafka topics rather than direct database connections
• The ability to rebuild derived datastores by replaying the change log from a known offset

For real-time data pipelines, CDC eliminates the gap between "data at rest" and "data in motion." Your analytical systems, search indexes, caches, and microservices all see changes as they happen rather than in delayed batches.

Log-Based CDC vs. Query-Based CDC

There are two fundamental approaches to capturing changes from a database.

Log-based CDC reads the database's internal transaction log (WAL in PostgreSQL, binlog in MySQL, redo log in Oracle). This is the preferred method. The database already writes these logs for crash recovery and replication, so CDC reads them with near-zero overhead. Log-based CDC captures all changes including deletes, preserves the exact ordering of transactions, and works without schema modifications.

Query-based CDC periodically polls the source table using SQL queries, typically filtering by a last_modified timestamp column. This is simpler to set up but has significant limitations: it cannot reliably detect deletes, requires a timestamp or incrementing column on every tracked table, misses rapid intermediate changes between polls, and puts read load on the source database.

For most production use cases, log-based CDC is the correct choice. Query-based CDC can work for simple, append-only tables where deletes are not a concern.

Debezium vs. Kafka Connect JDBC: Choosing a CDC Pattern

The two most common ways to implement CDC with Kafka are Debezium (log-based) and the Kafka Connect JDBC Source Connector (query-based). They serve different purposes.

Debezium

Debezium is an open-source CDC platform built on Kafka Connect. It reads database transaction logs directly and produces change events to Kafka topics.

Key characteristics:

• Reads WAL/binlog/redo logs directly; no schema changes required on source tables
• Captures inserts, updates, and deletes with full before/after images of each row
• Provides exactly-once semantics when combined with Kafka's transactional features
• Supports PostgreSQL, MySQL, MongoDB, SQL Server, Oracle, Db2, and others
• Emits a structured envelope containing the operation type, before state, after state, source metadata, and transaction info
• Handles initial snapshots of existing data before switching to log streaming

Kafka Connect JDBC Source

The JDBC Source Connector uses SQL queries to poll for changes at a configured interval.

Key characteristics:

• Requires a timestamp column, an incrementing column, or both to detect changes
• Cannot capture deletes (the row is gone before the next poll)
• Simpler setup: no database-level replication configuration needed
• Higher latency, bounded by the poll interval
• Puts periodic query load on the source database
• Works with any JDBC-compatible database

When to Use Which

Use Debezium when you need complete change capture (including deletes), low latency, minimal source database impact, and accurate ordering of changes. This covers most CDC use cases.

Use the JDBC Source Connector when you have a simple append-only or update-only table, cannot configure database-level replication permissions, or need a quick prototype before investing in log-based CDC infrastructure.

Working Example: PostgreSQL to Kafka with Debezium

The following walks through a complete setup using PostgreSQL's logical replication and Debezium.

Step 1: Configure PostgreSQL for Logical Replication

Edit postgresql.conf:‍


wal_level = logical
max_replication_slots = 4
max_wal_senders = 4

Create a replication user and grant permissions:‍


CREATE ROLE debezium WITH REPLICATION LOGIN PASSWORD 'dbz_password';
GRANT USAGE ON SCHEMA public TO debezium;
GRANT SELECT ON ALL TABLES IN SCHEMA public TO debezium;
ALTER DEFAULT PRIVILEGES IN SCHEMA public GRANT SELECT ON TABLES TO debezium;

Create a publication for the tables you want to track:

CREATE PUBLICATION dbz_publication FOR TABLE orders, customers, products;

Step 2: Deploy Kafka Connect with Debezium

A docker-compose.yml snippet for the Kafka Connect worker with the Debezium PostgreSQL connector plugin:

kafka-connect:
  image: debezium/connect:2.5
  ports:
    - "8083:8083"
  environment:
    BOOTSTRAP_SERVERS: kafka:9092
    GROUP_ID: connect-cluster
    CONFIG_STORAGE_TOPIC: connect-configs
    OFFSET_STORAGE_TOPIC: connect-offsets
    STATUS_STORAGE_TOPIC: connect-status
    KEY_CONVERTER: org.apache.kafka.connect.json.JsonConverter
    VALUE_CONVERTER: org.apache.kafka.connect.json.JsonConverter
  depends_on:
    - kafka
    - postgres

Step 3: Register the Debezium Connector

Submit the connector configuration via the Kafka Connect REST API:

{
  "name": "pg-cdc-connector",
  "config": {
    "connector.class": "io.debezium.connector.postgresql.PostgresConnector",
    "database.hostname": "postgres",
    "database.port": "5432",
    "database.user": "debezium",
    "database.password": "dbz_password",
    "database.dbname": "app_db",
    "topic.prefix": "cdc",
    "schema.include.list": "public",
    "table.include.list": "public.orders,public.customers,public.products",
    "publication.name": "dbz_publication",
    "slot.name": "debezium_slot",
    "plugin.name": "pgoutput",
    "publication.autocreate.mode": "filtered",
    "snapshot.mode": "initial",
    "tombstones.on.delete": true,
    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "key.converter.schemas.enable": false,
    "value.converter.schemas.enable": false
  }
}

Register it:

curl -X POST http://localhost:8083/connectors \
  -H "Content-Type: application/json" \
  -d @pg-cdc-connector.json

Step 4: Verify the Pipeline

Check the connector status:

curl -s http://localhost:8083/connectors/pg-cdc-connector/status | jq .

You should see the connector and its tasks in RUNNING state. Insert a row into the source table:

INSERT INTO orders (customer_id, product_id, quantity, total)
VALUES (1, 42, 3, 149.97);

Consume from the CDC topic to see the change event:

kafka-console-consumer --bootstrap-server kafka:9092 \
  --topic cdc.public.orders \
  --from-beginning \
  --max-messages 1

The resulting event will contain an envelope with op: "c" (create), the after field with the full row state, and source metadata including the LSN (Log Sequence Number), transaction ID, and timestamp.

A Debezium change event for an insert looks like this:

{
  "before": null,
  "after": {
    "id": 1001,
    "customer_id": 1,
    "product_id": 42,
    "quantity": 3,
    "total": 149.97
  },
  "source": {
    "version": "2.5.0.Final",
    "connector": "postgresql",
    "name": "cdc",
    "ts_ms": 1704067200000,
    "db": "app_db",
    "schema": "public",
    "table": "orders",
    "lsn": 234567890,
    "txId": 5678
  },
  "op": "c",
  "ts_ms": 1704067200123
}

For updates, op is "u" and both before and after are populated. For deletes, op is "d" and after is null.

CDC in an Enterprise Data Mesh Architecture

In a data mesh, domain teams own their data products and expose them through well-defined interfaces. CDC fits naturally into this model because it allows teams to publish their database changes as domain events without building custom event-producing application code.

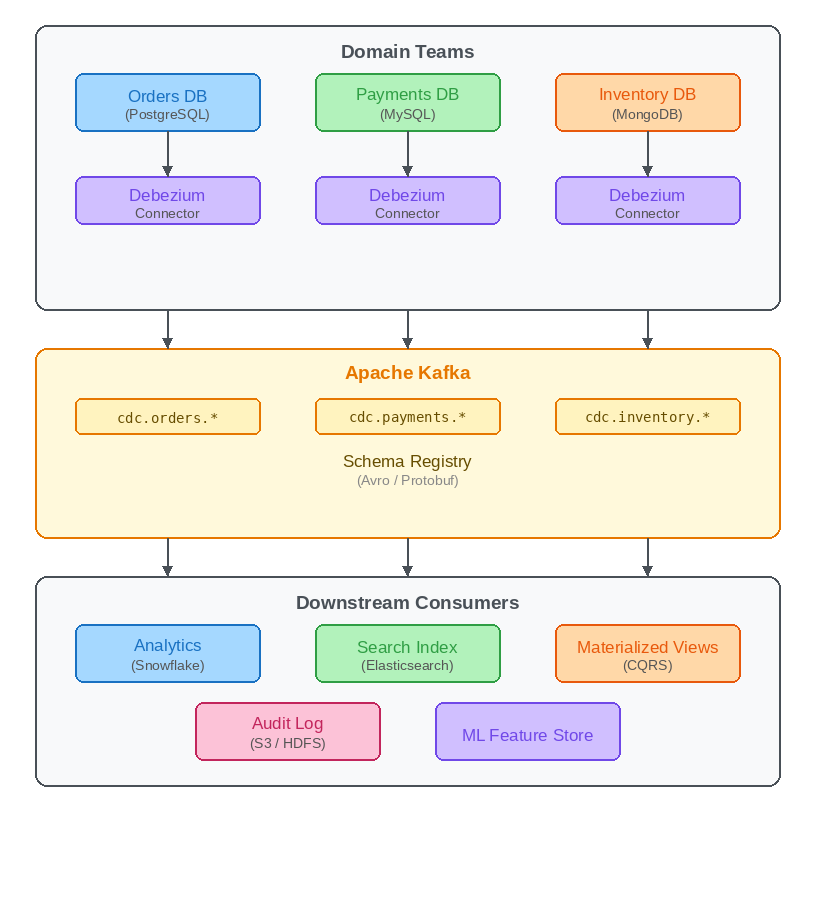

A typical architecture looks like this:

Each domain team runs a Debezium connector for its database. The change events land in Kafka topics namespaced by domain (e.g., cdc.orders.*). A schema registry enforces contracts on the event format. Downstream teams consume from these topics to build analytics stores, search indexes, materialized views, audit logs, or ML feature stores.

This decouples data producers from consumers entirely. The Orders team does not need to know that the Analytics team reads their changes, and vice versa. Kafka acts as the durable, replayable log that connects the domains.

In practice, you also need governance over topic naming, schema evolution rules, data classification, and access controls. CDC topics often carry sensitive data (customer PII, payment details), so encryption, RBAC, and audit logging are essential at the Kafka layer.

Common CDC Pitfalls

Replication slot growth. If a consumer falls behind or a connector stops, PostgreSQL retains WAL segments for the replication slot indefinitely. This can fill the disk. Monitor pg_replication_slots and set max_slot_wal_keep_size as a safety limit.

Schema evolution. When a source table schema changes (added columns, type changes), the CDC events change shape. Use a schema registry with compatibility checks (backward, forward, or full) to prevent breaking downstream consumers. Debezium integrates with Confluent Schema Registry and Apicurio.

Snapshot handling. On first startup, Debezium takes an initial snapshot of the existing data. For large tables, this can take hours and produce a burst of messages. Plan capacity accordingly and consider using snapshot.mode=no_data if you only need changes going forward.

Ordering guarantees. Debezium produces events in commit order within a single table partition. If you need strict ordering across tables or across partitions of the same table, you need to handle this in your consumer logic or use single-partition topics (which limits throughput).

Tombstone records. Debezium emits a tombstone (null value) after a delete event by default. This is required for Kafka log compaction to work correctly, removing the key entirely from the compacted topic. Make sure your consumers handle null values.

Monitoring CDC Pipelines with Kpow

CDC connectors are long-running processes, and they fail silently more often than you would like. A connector task might enter a FAILED state because of a WAL slot issue, a schema change, or a network partition. Without monitoring, these failures go unnoticed until downstream systems start serving stale data.

Kpow gives you real-time visibility into Kafka Connect clusters alongside the rest of your Kafka infrastructure.

Specifically for CDC pipelines, Kpow helps with:

Connector and task health. Kpow surfaces the status of every connector and task (RUNNING, PAUSED, FAILED, UNASSIGNED) in a single view. You can set up Prometheus alerts via Kpow's metrics endpoint to fire when a connector task enters an error state, so your team gets notified immediately rather than discovering the failure through downstream symptoms.

Consumer lag tracking. The CDC topics produced by Debezium are consumed by downstream services. Kpow tracks consumer group lag across all topics and partitions, letting you see at a glance whether any consumer is falling behind. For CDC, rising lag means your derived datastore is diverging from the source of truth.

Automatic connector restarts. Kpow can automatically restart failed connectors at configurable intervals. You specify which connectors to auto-restart (by exact name or wildcard pattern), and Kpow monitors them at one-minute intervals. All restart actions are logged in the audit trail and can be forwarded to Slack for team visibility.

Operational controls. From Kpow's UI or OpenAPI-based REST API, you can pause, resume, restart, or delete connectors, inspect task stack traces when errors occur, and view or edit connector configurations. This gives your on-call engineers a single interface for triaging CDC issues without needing to hit the Kafka Connect REST API directly.

Multi-cluster support. If you run CDC connectors across multiple Kafka clusters or environments (dev, staging, production), Kpow manages them all from a single instance with role-based access controls and audit logging.

CDC is one of those patterns where the setup is the easy part. Keeping it running reliably at scale, across multiple source databases and dozens of connectors, is where the operational complexity lives. Kpow reduces that complexity by consolidating connector health, consumer lag, topic throughput, and cluster metrics into a single tool.

You can try Kpow with a free 30 day trial or explore the full documentation at docs.factorhouse.io.
